Product Introduction
Overview
The Automatic French Fries Frying Production Line processes fresh potatoes into fried French fries through peeling, washing, cutting, blanching, drying, frying, de-oiling, cooling, seasoning, and packaging.
The continuous processing system reduces manual handling and helps maintain a more consistent production flow. The line can be customized according to capacity, fry size, heating method, seasoning requirements, and packaging format.
Processing Flow
Fresh Potatoes → Lifting → Peeling → Bubble Washing → Sorting → Cutting → Blanching → Dewatering → Drying → Frying → De-Oiling → Cooling → Seasoning → Packaging

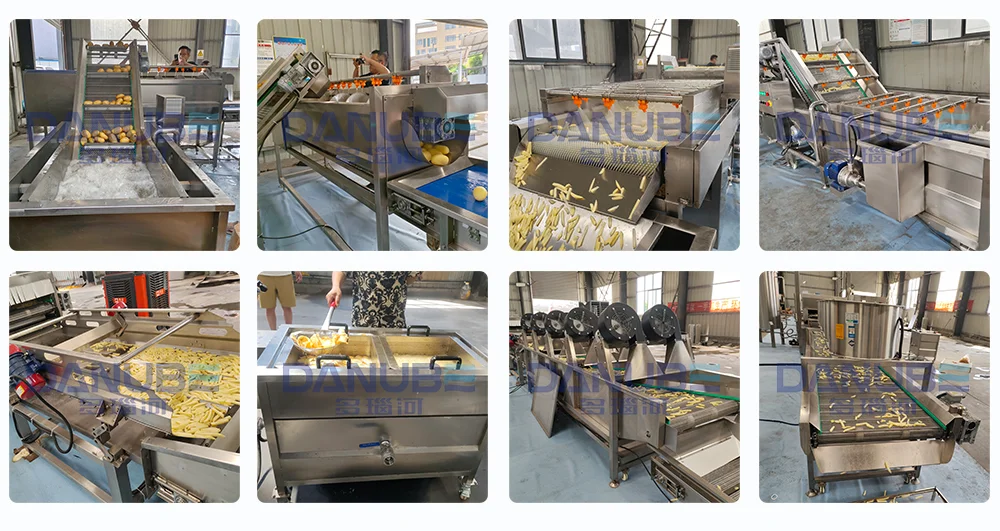

Main Equipment & Buyer Benefits
Potato Lifting Machine
The lifting machine automatically transfers fresh potatoes to the peeling section, reducing manual handling of heavy raw materials and helping maintain a continuous production flow.
Potato Peeling Machine
The peeling machine mechanically removes potato skins, providing a more stable processing speed while reducing repetitive manual peeling work as production volume increases.
Bubble Washing Machine
The bubble washing machine uses water bubbling and spray washing to remove soil, peel residues, and surface impurities, while food-grade SUS304 stainless steelconstruction provides a hygienic and easy-to-clean solution for commercial food processing.
Picking Belt
The picking belt provides a continuous inspection point for removing damaged potatoes, foreign materials, and unsuitable pieces before cutting, helping reduce downstream processing problems and material loss.
French Fries Cutting Machine
The cutting machine produces evenly sized potato strips, helping fries cook more uniformly during blanching and frying and making it easier to maintain consistent product specifications.
Blanching Machine
The blanching machine pre-treats potato strips before drying and frying, helping improve color and texture consistency and providing more stable conditions for the following processing stages.
Dewatering Machine
The dewatering machine removes free surface water after blanching, reducing the amount of moisture entering the drying and frying stages and helping minimize oil splashing while improving frying stability.
Drying Machine
The drying machine further reduces remaining surface moisture before frying, working together with the dewatering stage to lower the water load on the frying oil and support more stable frying conditions and crispier finished fries.
Continuous Frying Machine
The continuous frying machine fries potato strips with adjustable frying temperature and conveyor speed, reducing repeated loading and unloading while helping maintain consistent frying results during continuous production; the lifting mechanism also makes cleaning and maintenance more convenient.
De-Oiling Machine
The de-oiling machine removes excess surface oil after frying, helping reduce the greasy feel of finished fries, improve seasoning performance, and minimize unnecessary oil carried into the cooling and packaging stages.
Cooling Machine
The cooling machine continuously reduces the temperature of fried fries before seasoning and packaging, helping create a more stable downstream process without requiring workers to manually spread and cool the product.
Seasoning Machine
The seasoning machine evenly distributes salt, spices, or other flavorings over the fried fries, helping maintain more consistent flavor while reducing manual seasoning work and uneven application.
Packaging Machine
The packaging machine automatically packs finished French fries according to the required package format, reducing final-stage manual handling and creating a smoother transition from processing to finished products.
Key Advantages
Food-Grade SUS304 Stainless Steel
The entire processing line is built with food-grade SUS304 stainless steel, providing a hygienic, durable, and easy-to-clean solution for commercial food processing.
PLC Integrated Control
The PLC control systemallows individual machines and key processing parameters to be adjusted according to production requirements, while coordinating the overall line for easier operation and more consistent processing.
Energy & Oil Saving Design
The line is designed to improve the utilization of heating energy and frying oil, while the dewatering and drying stages reduce excess moisture entering the fryer, helping improve frying efficiency and reduce unnecessary operating costs.
Flexible Modular Configuration
The production line can be configured according to factory layout, production capacity, French fry size, heating method, and final product requirements, making it suitable for different commercial potato-processing applications.
Technical Parameters
| French Fries Frying Production Line | |||
|---|---|---|---|
| No. | Machine Name | Power | Size (L × W × H) |
| 1 | Lifting Machine | 0.55 kW | 2000 × 800 × 1300 mm |
| 2 | Peeling Machine | 4.37 kW | 3400 × 1000 × 1400 mm |
| 3 | Bubble Washing Machine | 6 kW | 4000 × 1200 × 1600 mm |
| 4 | Picking Belt | 0.75 kW | 4000 × 800 × 900 mm |
| 5 | Cutting Machine | 1.1 kW | 1000 × 600 × 900 mm |
| 6 | Blanching Machine | 60 kW | 5000 × 1200 × 1500 mm |
| 7 | Dewater Machine | 0.5 kW | 1800 × 1400 × 1300 mm |
| 8 | Drying Machine | 7.5 kW | 4000 × 1000 × 1500 mm |
| 9 | Continuous Frying Machine | 140 kW | 8000 × 1500 × 2000 mm |
| 10 | De-Oiling Machine | 7.5 kW | 6000 × 1100 × 1500 mm |
| 11 | Cooling Machine | 7.1 kW | 4000 × 1000 × 1500 mm |
| 12 | Seasoning Machine | 1.5 kW | 3000 × 1000 × 1600 mm |
| 13 | Packing Machine | 6 kW | 3500 × 2700 × 3600 mm |
Note: The above technical parameters are for reference only. Final equipment configuration, power, dimensions, heating method, and production capacity can be customized according to the raw material, product specifications, processing requirements, and factory layout.
Applications & Versatile Processing Range
Primary Application: French Fries
Straight-cut French fries
Crinkle-cut French fries
Different fry sizes and lengths
Seasoned and flavored French fries
Extended Applications
Snack Foods: Potato chips, cassava chips, taro chips, banana chips, prawn crackers, puffed snacks, green peas, and fried noodle snacks.
Meat & Seafood: Chicken, chicken wings, pork skin, pork ribs, fish, and other fried meat products.
Frozen & Par-Fried Foods: French fries, spring rolls, dumplings, meatballs, fish balls, and other frozen foods.
Vegetarian & Plant-Based Foods: Tofu, tofu skin, plant-based meat, wheat gluten, seitan, and vegetable tempura.
Custom Configuration: The frying line can be customized according to the raw material, production capacity, frying conditions, and packaging requirements.
Frequently Asked Questions (FAQ)
Q1: What is the processing capacity of the French fries production line?
A: The line can be customized for different production capacities, with equipment size and configuration adjusted according to the required output, French fry specifications, and factory layout.
Q2: What heating methods are available for the frying system?
A: The continuous frying system can be configured with different heating methods, such as electric, gas, steam, or other suitable options according to the customer’s requirements.
Q3: How does the line help improve frying efficiency?
A: Dewatering and drying before frying help remove surface moisture, while continuous temperature and conveyor-speed control support more stable frying and efficient oil use.
Q4: What material is used for the French fries processing equipment?
A: The main food-contact and structural parts of the production line are made of food-grade SUS304 stainless steel for durability, hygiene, and easy cleaning.
