Product Introduction
Overview
The Potato Chips Production Line is designed for continuous commercial processing of fresh potatoes into crispy potato chips, integrating preparation, frying, de-oiling, seasoning, and packaging.The line reduces manual handling and improves processing consistency, with capacity, chip thickness, heating method, and equipment configuration customizable to your requirements.
Typical Processing Flow
Fresh Potatoes → Peeling → Washing → Sorting → Slicing → Blanching → Dewatering → Drying → Frying → De-Oiling → Cooling → Seasoning → Packaging

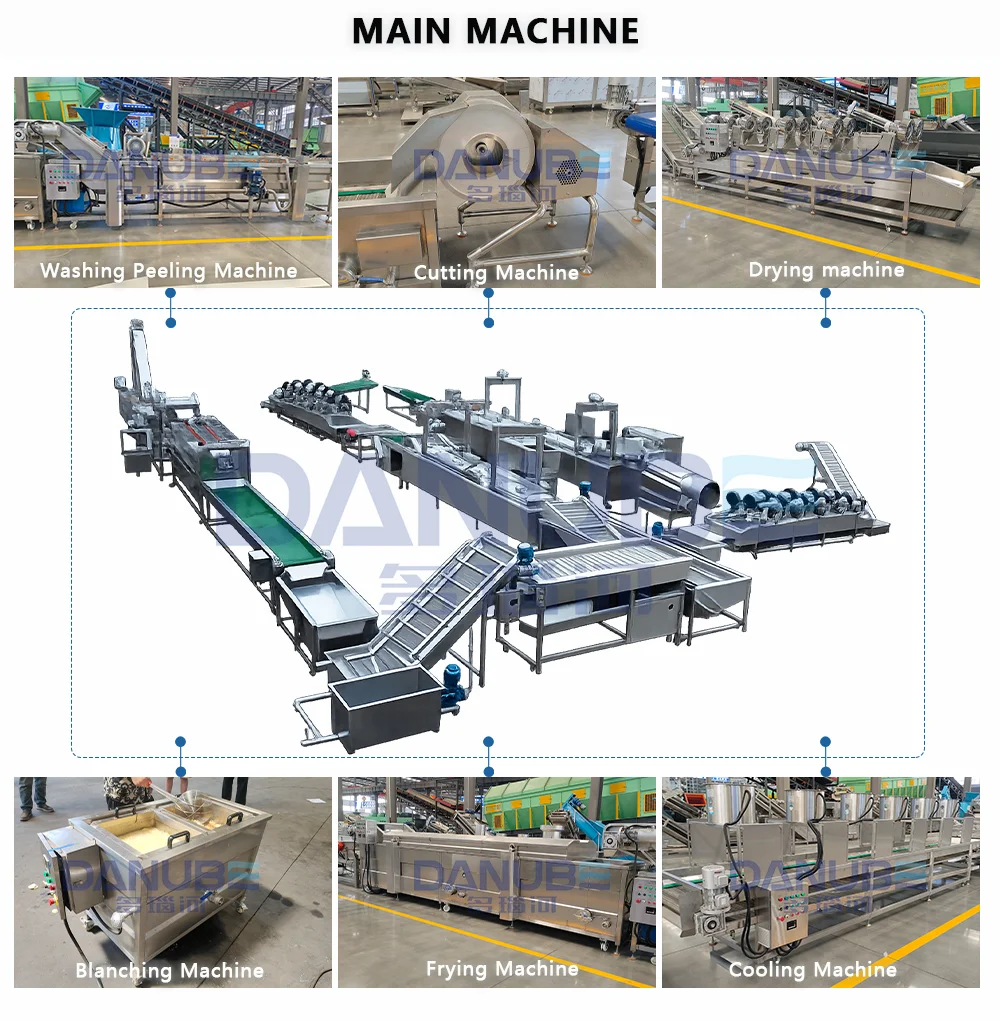

Main Equipment
Peeling Machine
Continuously removes potato skins before further processing, reducing manual peeling labor and helping improve raw material utilization for large-scale production.
Bubble Washing Machine
Thoroughly removes soil, dirt, and surface impurities from the potatoes, providing cleaner raw material for slicing and reducing unwanted contaminants entering subsequent stages.
Cutting Machine
Cuts potatoes into thin, uniform slices with adjustable thickness, helping maintain consistent slice dimensions and achieve more even frying, crispness, and finished-product quality.
Blanching Machine
Pre-treats the potato slices in hot water to help remove surface starch and reduce enzymatic browning, minimizing sticking and excessive darkening during frying while supporting more consistent chip color and texture.
Dewater & Drying System
Removes excess surface moisture before frying, reducing water entering the fryer and helping control oil splashing, frying load, and unnecessary oil loss for more efficient production.
Continuous Frying Machine
Provides continuous frying with adjustable temperature and conveyor speed, maintaining stable frying conditions to improve output consistency, reduce manual intervention, and support efficient large-scale production.
De-Oiling Machine
Removes excess surface oil after frying, reducing oil carried into the finished chips while improving mouthfeel and helping optimize oil usage during continuous processing.
Seasoning Machine
Distributes salt, spices, or other seasonings evenly across the chips, helping maintain consistent flavor while reducing uneven coating and seasoning waste.
Packing Machine
Automatically weighs and packs the finished chips, reducing repetitive manual labor and improving packaging speed and consistency.
Key Advantages
Food-Grade SUS304 Stainless Steel
The entire processing line is built with food-grade SUS304 stainless steel, providing a hygienic, durable, and easy-to-clean solution for commercial potato chip production.
PLC Integrated Control
The PLC control system allows individual machines and key processing parameters to be adjusted according to production requirements, while coordinating the overall line for easier operation and more consistent processing.
Continuous Production
The integrated processing system connects preparation, frying, de-oiling, seasoning, and packaging into a continuous workflow, helping reduce manual handling and improve overall production efficiency.
Moisture & Oil Control
Dewatering and drying before frying help control surface moisture, while the de-oiling stage removes excess surface oil after frying. Together, these stages help improve frying stability, product texture, and oil utilization.
Flexible Configuration
The production line can be configured according to required capacity, potato chip thickness, heating method, factory layout, and final product requirements.
Technical Parameters
| Potato Chips Production Line | |||
|---|---|---|---|
| No. | Machine Name | Power | Size (L × W × H) |
| 1 | Lifting Machine | 0.55 kW | 2000 × 800 × 1300 mm |
| 2 | Peeling Machine | 4.37 kW | 3400 × 1000 × 1400 mm |
| 3 | Bubble Washing Machine | 6 kW | 4000 × 1200 × 1600 mm |
| 4 | Picking Belt | 0.75 kW | 4000 × 800 × 900 mm |
| 5 | Cutting Machine | 1.1 kW | 1000 × 600 × 900 mm |
| 6 | Blanching Machine | 60 kW | 5000 × 1200 × 1500 mm |
| 7 | Dewater Machine | 0.5 kW | 1800 × 1400 × 1300 mm |
| 8 | Drying Machine | 7.5 kW | 4000 × 1000 × 1500 mm |
| 9 | Continuous Frying Machine | 140 kW | 8000 × 1500 × 2000 mm |
| 10 | De-Oiling Machine | 7.5 kW | 6000 × 1100 × 1500 mm |
| 11 | Cooling Machine | 7.1 kW | 4000 × 1000 × 1500 mm |
| 12 | Seasoning Machine | 1.5 kW | 3000 × 1000 × 1600 mm |
| 13 | Packing Machine | 6 kW | 3500 × 2700 × 3600 mm |
Note: The above technical parameters are for reference only. Final equipment configuration, power, dimensions, heating method, and production capacity can be customized according to the raw material, chip specifications, processing requirements, and factory layout.
Applications & Versatile Processing Range
Primary Application: Potato Chips
Thin potato chips
Crispy potato chips
Seasoned and flavored potato chips
Extended Applications
Snack Foods: Potato chips, cassava chips, taro chips, banana chips, prawn crackers, puffed snacks, green peas, and fried noodle snacks.
Meat & Seafood: Chicken, chicken wings, pork skin, pork ribs, fish, and other fried meat products.
Frozen & Par-Fried Foods: French fries, spring rolls, dumplings, meatballs, fish balls, and other frozen foods.
Vegetarian & Plant-Based Foods: Tofu, tofu skin, plant-based meat, wheat gluten, seitan, and vegetable tempura.
Custom Configuration: The frying line can be customized according to the raw material, production capacity, frying conditions, and packaging requirements.
