Product Introduction
1. Overview
DANUBE’s Banana Drying & Powder Production Line provides a complete processing solution for turning fresh bananas into dried banana slices or banana powder.
The line integrates banana peeling, slicing, blanching, air drying, and the main drying process into a streamlined production flow. After drying, the banana slices can be packaged directly or further processed through grinding and powder packaging to produce banana powder.

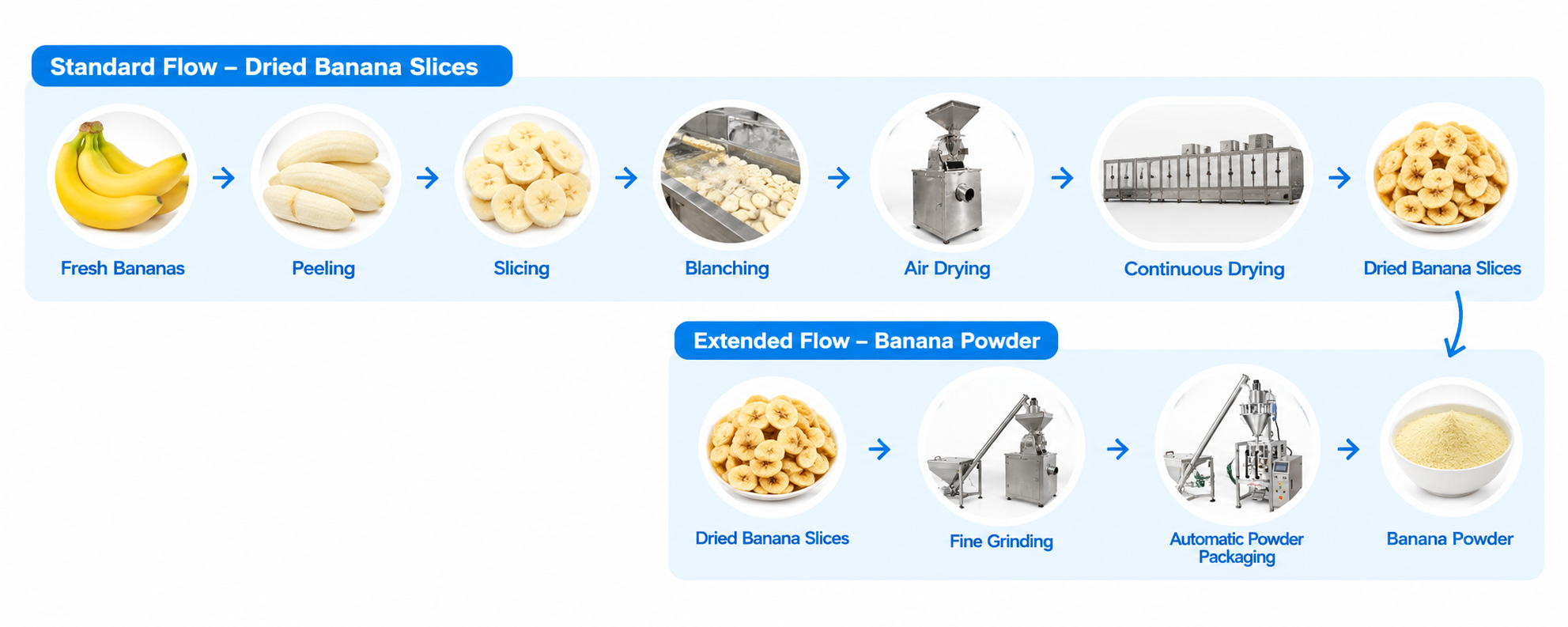

2. Banana Processing and Drying Flow
Standard Flow – Dried Banana Slices
Fresh Bananas → Peeling → Slicing → Blanching → Air Drying → Continuous Drying → Packaging
Extended Flow – Banana Powder
Dried Banana Slices → Fine Grinding → Automatic Powder Packaging
The dried slices can be further ground into fine banana powder and automatically packed according to the required packaging specifications.
3. Main Equipment
1. Banana Peeling Machine
Automatically removes banana peels from bananas of different sizes, shapes, and curved surfaces, reducing manual peeling work and improving processing efficiency.
2. Banana Slicing Machine
Cuts peeled bananas into slices with adjustable thickness according to production requirements, while food-grade stainless steel construction supports hygienic food processing.
3. Banana Blanching & Soaking Machine
Provides controlled-temperature blanching and soaking to help prevent enzymatic browning and maintain the natural color of banana slices before drying.
4. Banana Air Drying Machine
Uses air drying to remove surface moisture from blanched banana slices before the main drying stage, helping improve the overall drying process.
5. Banana Mesh Belt Dryer
Continuously removes moisture from banana slices through heated-air drying on a perforated mesh belt, providing a stable drying process for commercial production.
6. Banana Powder Grinding Machine
Grinds dried banana chips into 10–120 mesh powder using different screen sizes, with stable operation, low noise, and an air- or water-cooling system to control heat during milling.
7. Banana Powder Packaging Machine
Uses a PLC control system to automatically measure and fill banana powder while allowing quick adjustment of packing weight, bag width, and other packaging requirements.
4. Flexible Drying System Configurations
The Mesh Belt Dryer is the primary drying equipment for this banana chips production line, providing continuous and efficient drying for commercial production.
Mesh Belt Dryer
Sliced bananas are evenly distributed onto the perforated mesh belt and transported continuously through the drying chamber, where heated air gradually removes moisture. Drying conditions can be adjusted according to slice thickness, initial moisture content, target final moisture content, and production capacity.
Heat Pump Drying Room – Optional
For customers who require batch processing or more flexible production arrangements, a Heat Pump Drying Room can be used as an alternative drying solution.
For more information, see our Mesh Belt Dryer and Heat Pump Drying Room product pages.
5. Technical Parameter
| Automatic Banana Drying Processing Line | |||
|---|---|---|---|
| Number | Name | Power | Size |
| 1 | Banana Peeling Machine | 1.5 kW | 2200 × 1000 × 1500 mm |
| 2 | Banana Slicing Machine | 1.5 kW | 1100 × 800 × 1500 mm |
| 3 | Banana Blanching Machine | 6 kW | 3000 × 1000 × 1200 mm |
| 4 | Banana Air Drying Machine | 6 kW | 4000 × 950 × 1600 mm |
| 5 | Banana Mesh Belt Dryer | 33.12 kW | 12000 × 2000 × 2500 mm |
| 6 | Banana Powder Grinding Machine | 5.5 kW | 750 × 600 × 1260 mm |
| 7 | Banana Powder Packaging Machine | 3.5 kW | 3000 × 1500 × 2600 mm |
The banana processing line can be equipped according to the user’s requirements and production demands.
6. FAQ
1. What products can the banana drying line produce?
The line is mainly designed for dried banana slices and banana chips. With an additional grinding and powder packaging system, the dried slices can also be processed into banana powder.
2. Which drying system is suitable for banana slices?
The Mesh Belt Dryer is the primary option for continuous banana slice production. A Heat Pump Drying Room can also be selected for batch processing or more flexible production requirements.
3. How is the production capacity determined?
Production capacity depends on factors such as banana variety, raw material moisture, slice thickness, target final moisture, drying method, and required production output. The equipment configuration can be designed accordingly.
4. Can the banana drying production line be customized?
Yes. The processing flow, equipment configuration, drying system, heating source, production capacity, and factory layout can be customized according to the customer’s product and production requirements.
