1. Overview

Our Mango Drying Production Line processes fresh mangoes into dried slices through washing, preparation, cutting, and hot-air drying. The line can be customized according to the mango variety, product requirements, processing capacity, and final moisture content.

2. Mango Drying Process

The typical process is:

Fresh Mango → Washing → Peeling & Destoning → Slicing → Air Drying → Mesh Belt Drying → Packaging

The exact equipment arrangement can be adjusted according to the final product and production requirements.

3. Main Equipment and Functions

1. Mango Washing Machine

The washing machine removes dirt and other impurities from the surface of fresh mangoes. Depending on the equipment configuration, brushing, spraying, or bubbling can be used to improve the cleaning effect.

2. Peeling & Destoning

The mangoes are peeled and the stones are removed to prepare the fruit for slicing. This step provides clean mango flesh for more consistent cutting and drying.

3. Mango Slicing Machine

The slicing machine cuts the prepared mango flesh into slices with a consistent size and thickness. Uniform slices help achieve more even drying and a consistent final product.

4. Air Drying Machine

The air drying unit removes surface moisture from freshly processed mango pieces before the main drying stage, helping prepare the product for more efficient hot-air drying.

5. Mesh Belt Dryer

The mesh belt dryer is the main drying equipment in the line.Mango pieces are continuously conveyed through the drying chamber while heated air circulates around and through the product. The drying conditions can be adjusted according to the material characteristics, slice thickness, and target moisture content.

6. Packaging Machine

After drying, the finished mango slices can be packed automatically or semi-automatically. The packaging system can be selected based on the required bag type, package weight, production capacity, and downstream process.

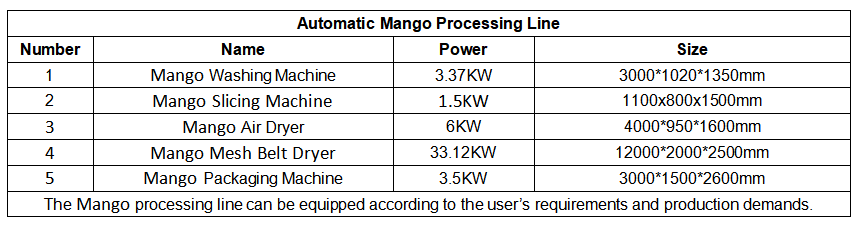

4. Technical Parameters

5. Key Features & Advantages

1. Continuous Drying

The mesh belt dryer continuously conveys mango slices through the drying chamber. Adjustable drying temperature and belt speed help achieve more uniform drying.

2. Flexible Production Configuration

The line can be configured according to mango variety, slice thickness, processing capacity, final moisture requirements, and workshop space. Different heating options can also be selected based on local conditions.

3. Reduced Manual Handling

Washing, preparation, slicing, drying, and packaging can be connected into one workflow, reducing repeated manual transfer between processing stages.

4. Food-Grade Construction

Food-contact parts can be made from stainless steel materials suitable for food-processing applications. The final construction can be customized according to hygiene and operating requirements.

5. Flexible Product Formats

The processing system can be adapted for mango slices, strips, or chunks according to the required product format and drying conditions.

6. Customized Capacity

The production capacity can be designed according to fresh mango input, slice thickness, moisture removal requirements, and operating hours.

6. Frequently Asked Questions

1. How much mango can the production line process?

Capacity depends on the complete line configuration and the drying requirements. Fresh mango input, slice thickness, moisture removal, operating hours, and dryer size all affect the final output.The production capacity can be designed according to the customer’s required daily or hourly throughput.

2. Can the line produce mango chunks instead of slices?

Yes. The cutting section can be configured for different product shapes, such as slices, strips, or chunks. The drying system can then be adjusted according to the size and thickness of the product.

3. Can the mango drying line be customized?

Yes. Equipment quantity, processing capacity, heating method, drying configuration, automation level, and packaging equipment can be selected according to the customer’s raw material, finished product, workshop conditions, and production requirements.

4. Can I purchase only the drying equipment?

Yes. If washing, cutting, or packaging equipment is already available, the drying section can be supplied separately. The mesh belt dryer can also be used as the core drying unit in an existing processing system.
