Executive Summary
Project Name: Indonesia Commercial Whole Red Chili Pepper Continuous Drying Line
Client Location: Indonesia
Processed Material: Whole Red Chili Peppers
Equipment Supplied: Industrial Mesh Belt Dryer + Air-Source Heat Pump Heating System + Automated Inclined Feeding Conveyor with Hopper
Application: Continuous, large-scale, low-temperature drying & color preservation for fresh whole red chilis
1. Project Background
Chili peppers are a vital agricultural commodity and spice raw material in Indonesia. To meet the rising demand for commercial processing, long-term storage, and high-value export markets, fresh whole red chili peppers must undergo standardized dehydration.
Traditionally, local processors relied heavily on outdoor sun drying. However, open-air drying leaves crops highly vulnerable to unpredictable weather conditions, resulting in inconsistent moisture reduction, high defect rates, and seasonal supply chain bottlenecks. To overcome these limits and scale up production, the customer partnered with DANUBE to build a modern, fully automated industrial drying line.
2. Key Processing Challenges
Commercial whole chili processing involves critical technical hurdles that simple drying methods cannot satisfy:
Skin Permeability & Drying Uniformity: Whole chilis have a thick, waxy outer skin, making moisture evaporation slow and uneven. Without optimized airflow and heat distribution, interior moisture remains trapped, leading to spoilage.
Color Preservation & Quality Control: Chilis are sensitive to heat. Excessive drying temperatures cause dark discoloration, loss of natural pungency, and poor visual appeal, drastically lowering market value.
Weather Dependence & Contamination: High humidity and frequent rainfall in Indonesia often lead to mold growth during outdoor drying. Open-air processing also exposes food items to dust, insects, and secondary contamination.
Labor Intensity: Manual handling, spreading, and turning of large raw material batches are labor-intensive, costly, and inefficient for commercial-scale operations.
3. Tailored Solution by DANUBE
To address these challenges, DANUBE designed and delivered a customized continuous mesh belt drying line specifically engineered for whole red chili peppers:
1. Automated Inclined Feeding Conveyor with Large Hopper
Fresh whole red chilis are unloaded into a heavy-duty loading hopper at floor level.
An automated inclined mesh conveyor smoothly elevates and spreads the material evenly into the drying chamber, reducing manual handling and ensuring a steady feed rate.
2. High-Efficiency Air-Source Heat Pump Units
Powered by dual side-mounted industrial heat pump heat recovery units, the system delivers clean, highly controllable hot air.
Compared to traditional electric heating or fossil fuel boilers, this system significantly reduces energy consumption while maintaining a clean, zero-emission drying environment.
3. Multi-Layer Continuous Mesh Belt Dryer
The interior utilizes a multi-layer mesh belt system where material moves continuously through distinct thermal zones.
Engineered airflow penetrates evenly through the chili bed as it moves, promoting thorough moisture removal across all layers without requiring manual agitation.
4. Smart Multi-Zone Temperature & Moisture Control
Operating parameters—including heating zones, humidity exhaust, and conveyor speed—can be precisely calibrated.
Gentle, controlled temperature curves prevent scorching, lock in the chili’s natural red pigment, and maintain target final moisture levels uniformly.
4. Project Installation & On-Site Performance

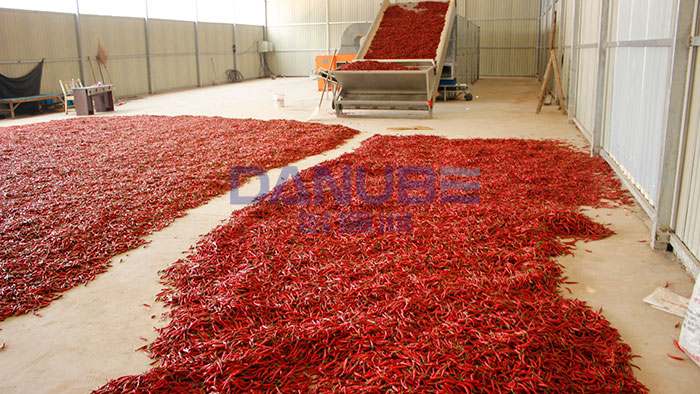

The photos from the customer’s processing plant show the complete line in full operation:
Feeding Zone: Fresh whole red chilis are fed via the hopper and inclined conveyor, forming a uniform layer entering the main chamber.
Drying Unit: Dual heat pump units actively supply precise thermal energy along the multi-layer insulated tunnel structure.
Workflow: The setup converts raw fresh chilis into high-grade dried chilis through a streamlined, continuous process.
5. Summary of Customer Benefits
Superior Product Quality: Precise low-to-medium temperature drying delivers excellent color retention, uniform moisture content, and high commercial value.
Significant Energy Savings: Industrial heat pump technology cuts power consumption by up to 50% compared to conventional heat sources.
All-Weather, Continuous Operation: Fully enclosed, indoor processing ensures year-round, uninterrupted production unaffected by rain or humidity.
Reduced Operational Costs: Automated material feeding and conveying minimize manual labor requirements and raw material damage.
About DANUBE
DANUBE specializes in industrial drying, frying equipment, and integrated food processing lines, serving customers in more than 130 countries and regions worldwide. We provide EPC project support from process planning and equipment manufacturing to installation and commissioning.
