Product Introduction
Overview
DANUBE industrial mesh belt dryer is designed for continuous, efficient, and uniform drying of fruits, vegetables, spices, herbs, seafood, grains, seeds, and other suitable materials. It uses a perforated mesh belt to convey materials through a drying chamber, where circulating hot air removes moisture for consistent drying performance.
With adjustable drying temperature, conveyor speed, and customizable configurations, the machine can accommodate different material characteristics, moisture requirements, and production capacities. DANUBE provides tailored drying solutions for commercial food processing and agricultural applications.
Process Flow
Material Feeding → Uniform Spreading → Continuous Mesh Belt Conveying → Hot-Air Drying → Moisture Removal → Automatic Discharge

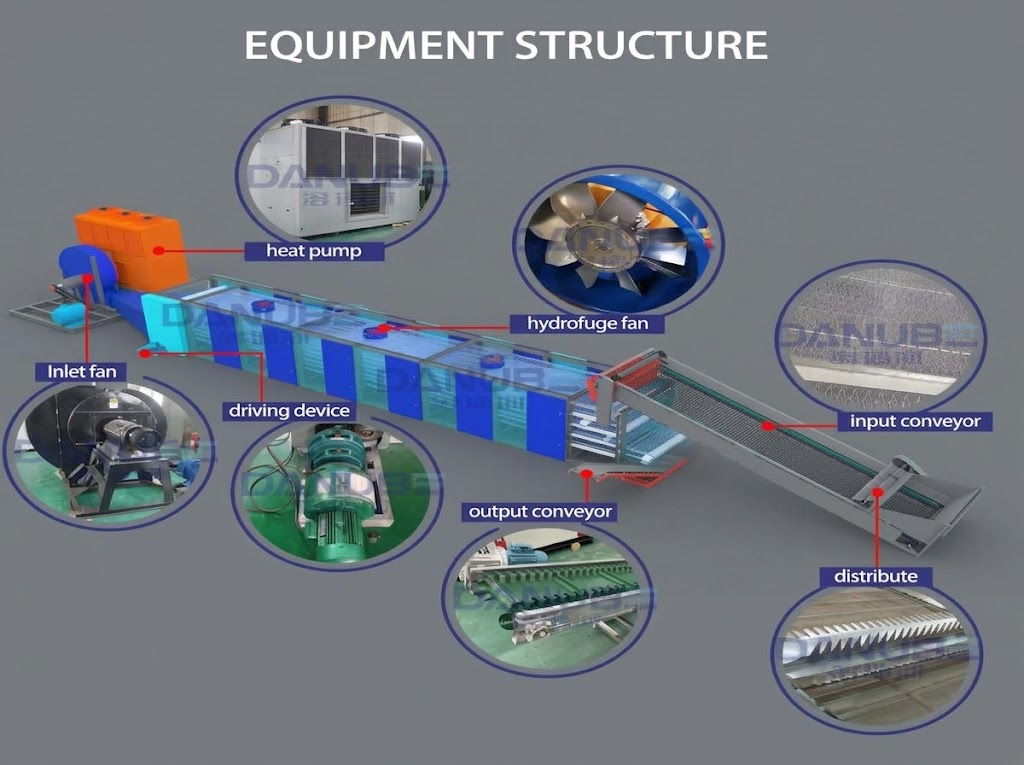

Main Components

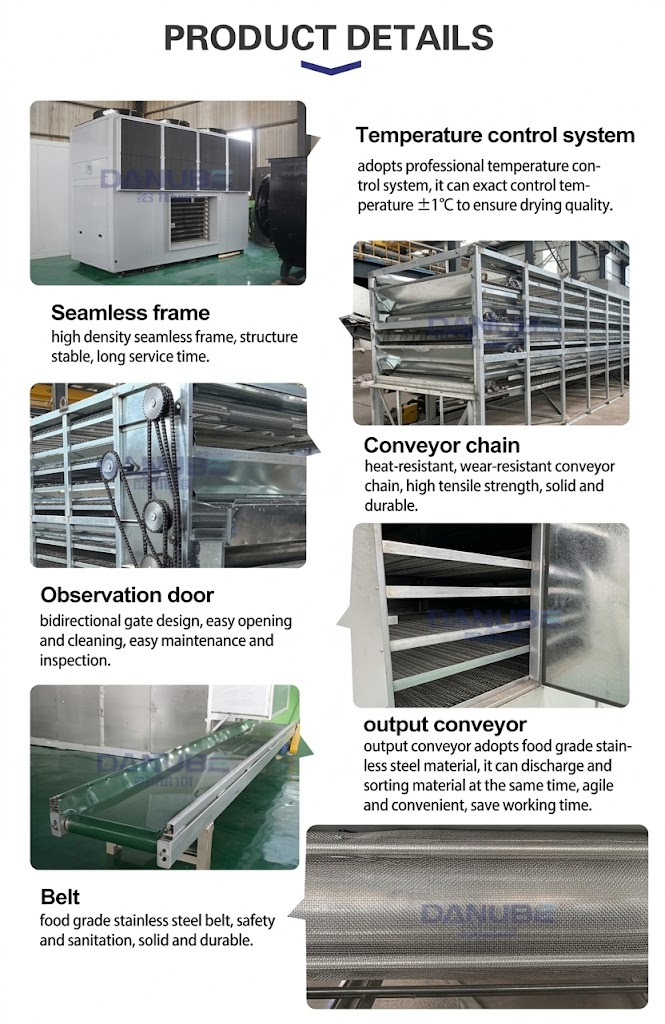

The mesh belt dryer consists of a seamless frame, heating system, fan system, input conveyor, distribution device,stainless steel belt, conveyor chain, driving device, temperature control system, observation door and output conveyor.
Key Advantages
1. Hygienic Food-Grade Design: Food-contact parts can be constructed from 304 stainless steel to support hygienic processing and facilitate cleaning and maintenance.
2. Uniform Drying Performance: Even material distribution and controlled hot-air circulation help achieve consistent drying results across the mesh belt.
3. Precise Temperature Control: Adjustable drying temperatures allow operators to match processing conditions to different materials and product requirements.
4. Adjustable Drying Time: Variable mesh belt speed provides greater control over material residence time, helping achieve the required moisture content.
5. Gentle Material Handling: Continuous conveying reduces the need for frequent manual handling and material turning, helping minimize product breakage and preserve material integrity.
6. Efficient Moisture Removal: Optimized hot-air circulation and moisture exhaust support effective drying and stable operating conditions.
7. Multiple Heating Options: Electric, natural gas/propane, coal, wood chips, and steam heating options are available, depending on the equipment configuration, allowing customers to select a suitable energy source based on local availability and operating costs.
8. Customized Drying Solutions: Belt width, dryer length, temperature settings, conveying speed, and other configuration details can be tailored to material characteristics, production capacity, and specific processing requirements.
Technical Parameters
| Continuous Mesh Belt Dryer – Technical Parameters | ||||||
|---|---|---|---|---|---|---|
| Operation temperature | Drying Time | Thickness of the material | Equipment Size | Capacity | Heat Source | Total Power |
| 40–120°C | 0.5–5 hours | 50–200 mm | 6×2×2.5 m | 200–400 kg/h | Electric | 66.5 kW |
| Natural Gas / propane | 12.22 kW | |||||
| Coal / Wood chips | 13.72 kW | |||||
| Steam | 11.22 kW | |||||
| 40–120°C | 9×2×2.5 m | 500–800 kg/h | Electric | 79.76 kW | ||
| Natural Gas / propane | 20.12 kW | |||||
| Coal / Wood chips | 23.12 kW | |||||
| Steam | 16.62 kW | |||||
| 40–120°C | 12×2×2.5 m | 1,000–1,500 kg/h | Electric | 153.12 kW | ||
| Natural Gas / propane | 33.12 kW | |||||
| Coal / Wood chips | 36.12 kW | |||||
| Steam | 25.62 kW | |||||
| Note: The continuous mesh belt dryer can be configured according to the customer’s material characteristics and production requirements. | ||||||
Suitable Materials
Typical applications include:
1. Vegetables: chili, carrot, onion, garlic and other vegetables.
2. Seeds: sunflower seeds, pumpkin seeds and other seeds.
3. Forage: grass, hay and other forage products.
4. Flower Tea: chrysanthemum, jasmine, osmanthus and other dried flowers.
5. Fruits: mango, banana, pineapple, jackfruit and other fruits.
6. Root & Tuber Crops: ginger, turmeric, cassava and other root crops.
7. Grains: rice, corn, wheat and other grains.
Why Choose DANUBE Mesh Belt Dryer?
Turnkey & Integrated Processing Lines
More than just drying equipment, DANUBE provides complete processing solutions, including compatible feeding, washing, sorting, cutting, cooling, and packaging machinery.
CE-Certified Quality
DANUBE offers CE-certified models that meet stringent European market standards, ensuring safety, reliability, and smooth compliance (scope varies by model and configuration).
End-to-End EPC Project Support
We provide comprehensive project execution—from process planning and custom design to manufacturing, global delivery, installation, and commissioning.
Customized Drying Solutions
DANUBE tailors every mesh belt dryer to your specific needs—taking into account material properties, initial and target moisture levels, processing capacity, and factory layout.
Flexible Heating Options
Choose from electricity, natural gas/propane, coal, wood chips, or steam, allowing you to optimize energy efficiency based on local resources and equipment configurations.
Frequently Asked Questions
1. Can the mesh belt dryer be customized?
Yes. Belt layers, belt width, dryer length, heating method, drying temperature, conveyor speed and production capacity can be customized according to the material and production requirements.
2. How do I choose the right mesh belt dryer model?
The dryer model should be selected according to the material, initial moisture content, target moisture content, processing capacity, material thickness, drying temperature and available heat source. We can recommend a suitable configuration based on your production requirements.
3. What information is needed to obtain a mesh belt dryer quotation?
Please provide the material type, initial and target moisture content, required processing capacity, preferred heating source, and available installation space. Material samples or additional processing details can help us evaluate the application and recommend a suitable configuration.
